Features
Product Details
Place of Origin: Shenzhen, China
Size:23.6 inch, 5 inch and 3.4 inch
Certification: CE, RoHS
Payment & Shipping Terms
Minimum Order Quantity: 1-10PC
Price: Negotiable
Packaging Details: EPE+ Carton box
Delivery Time: sample for 5 working days, bulk order about 25-30 days
Payment Terms: T/T, PayPal
Supply Ability: 2000pcs per month
Features

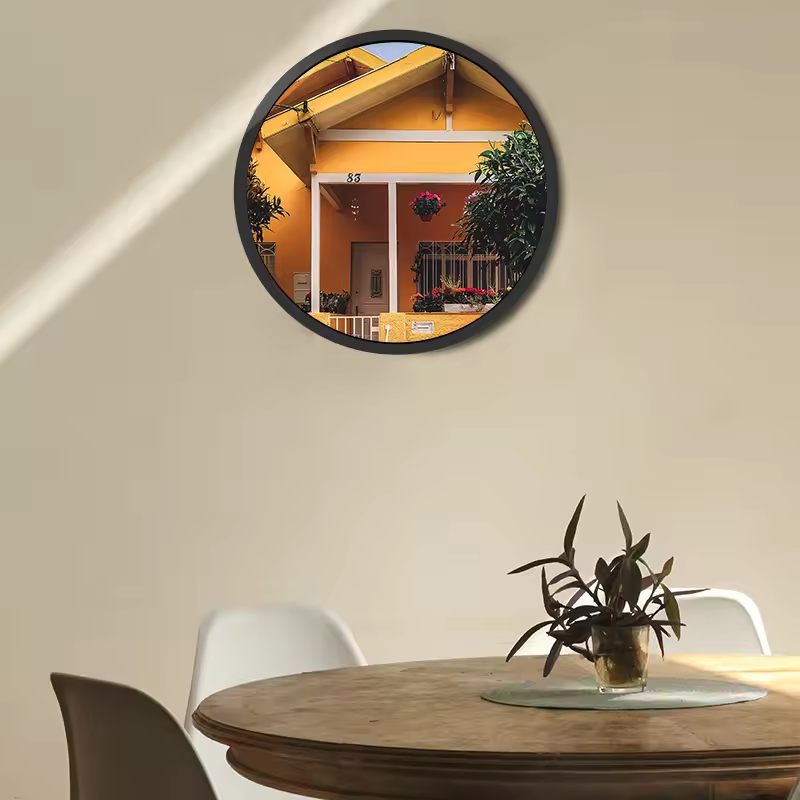

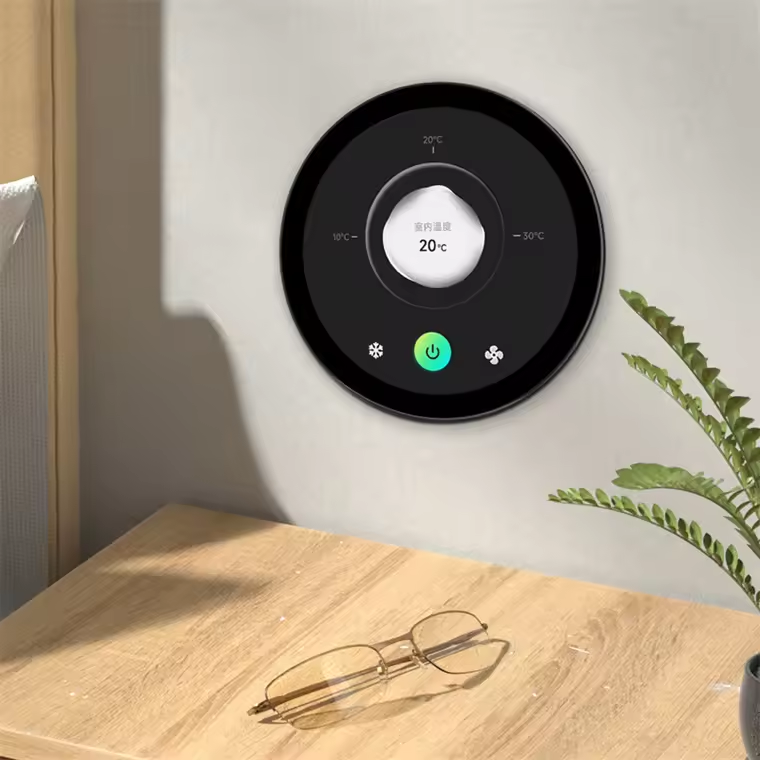

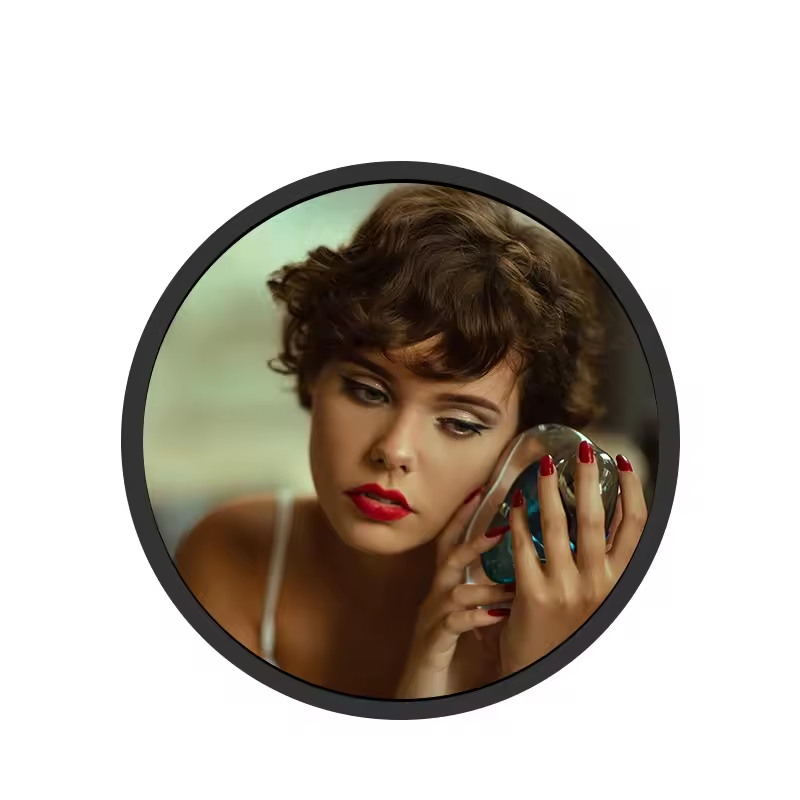

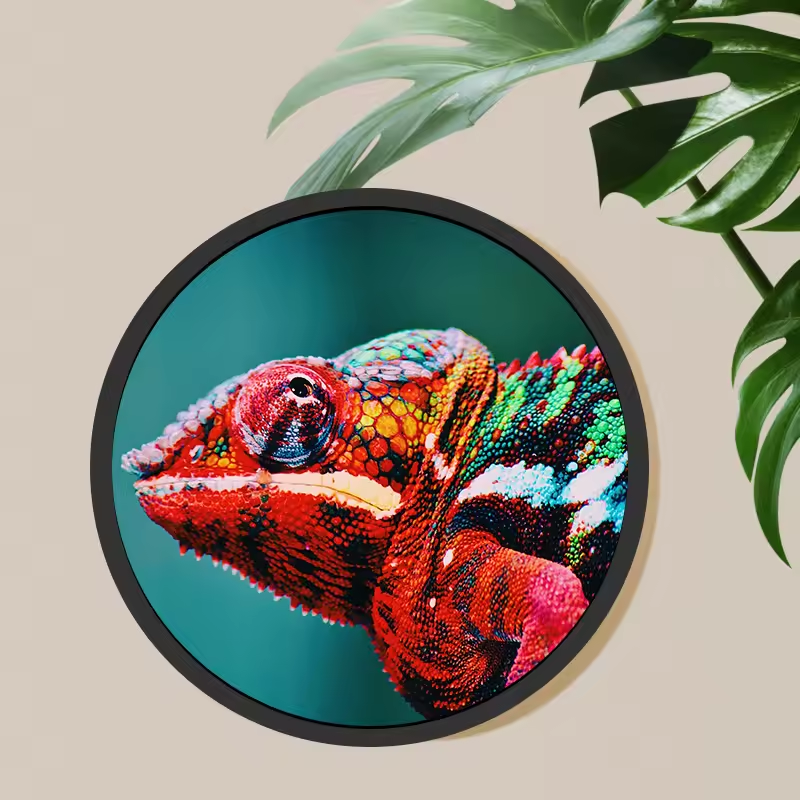

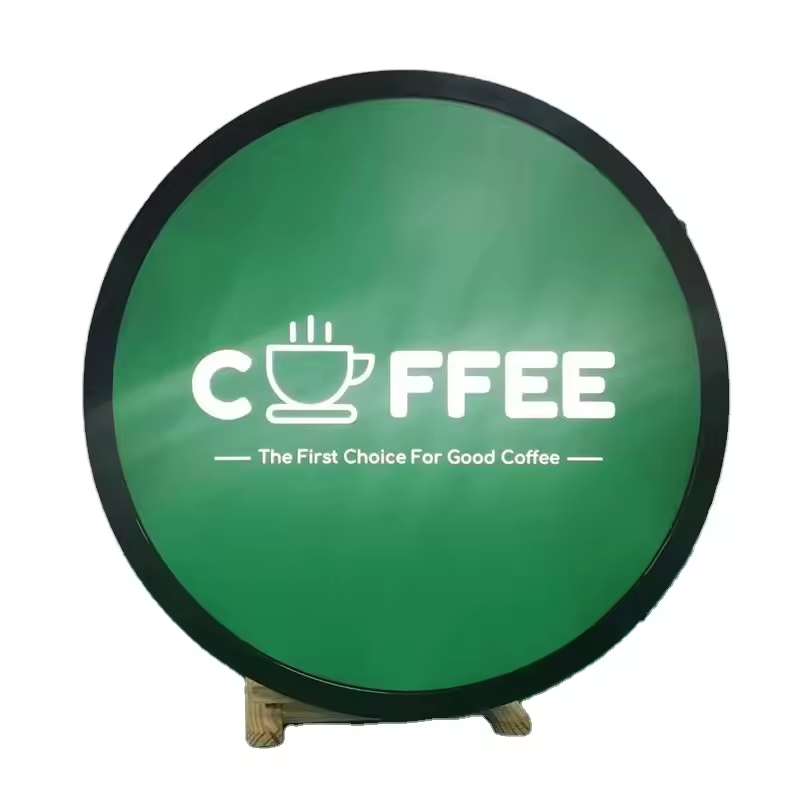

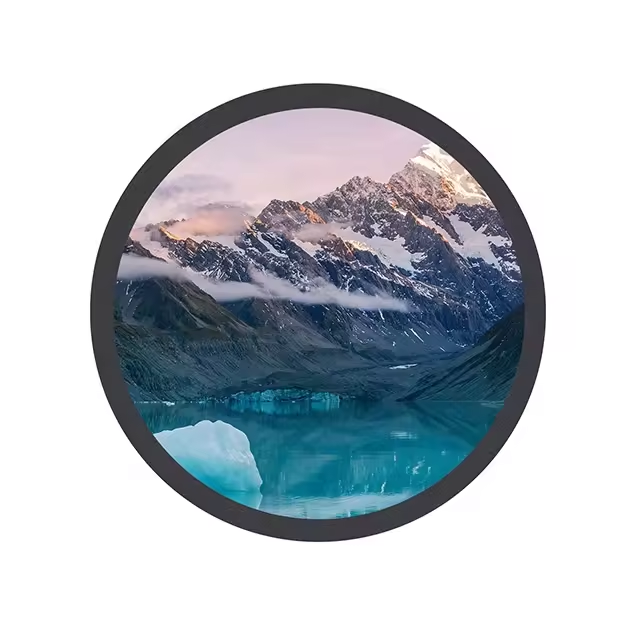

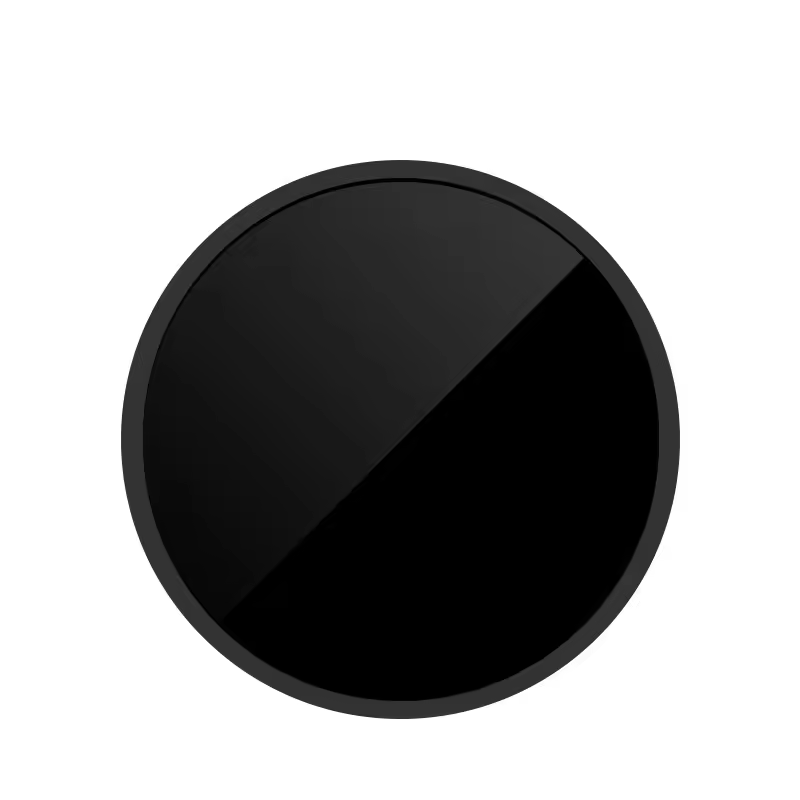

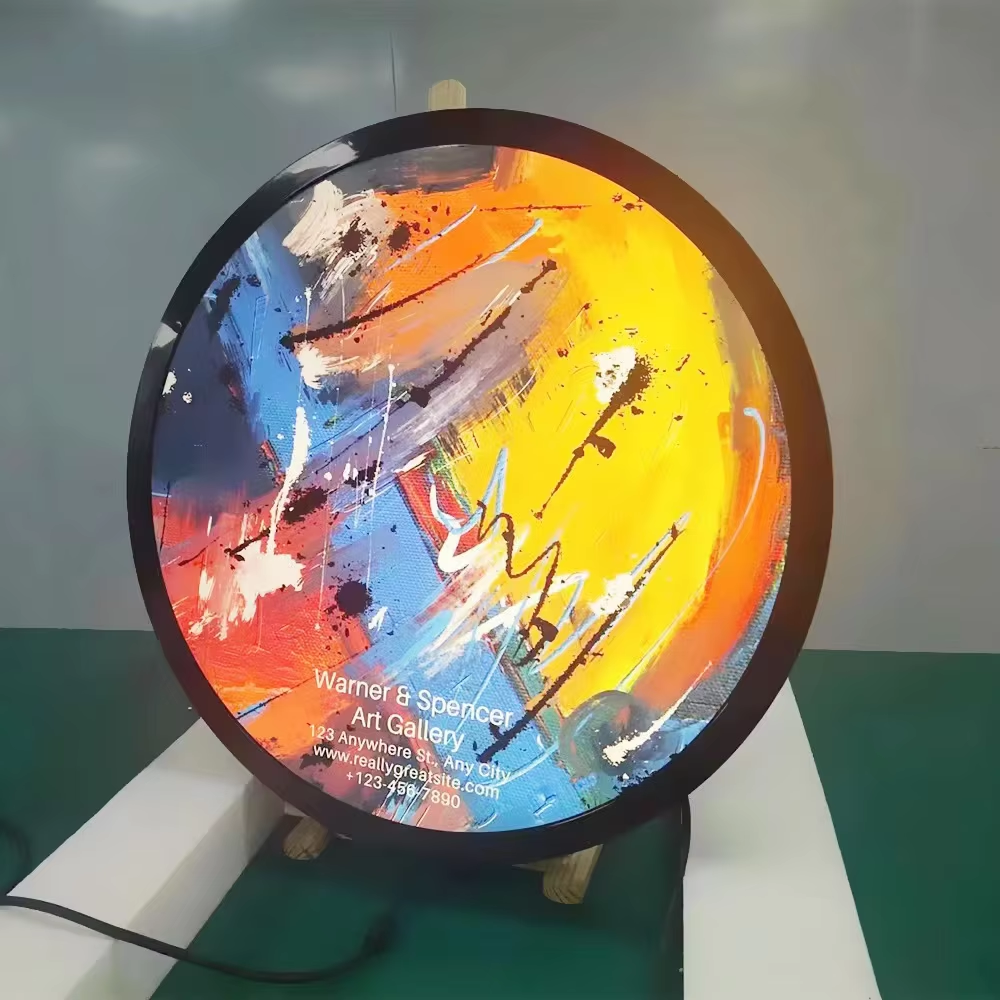

A perfect round screen LCD digital signage solution for Bars, Hotels and Retail environment from BT Starts.
Round Screen Resolution: 848*848 and 1280*1280
700 nits and 1500 nits high brightness optional
LED Backlight Life time: >60K hours
Viewing Angle (H/V): 178/178
Outline Dimension: 662.584*662.584mm | Display Area: 600.384*600.384mm
OPT.1: LCD Monitor with HDMI IN/VGA IN
OPT.2: Integrated with Android signage player

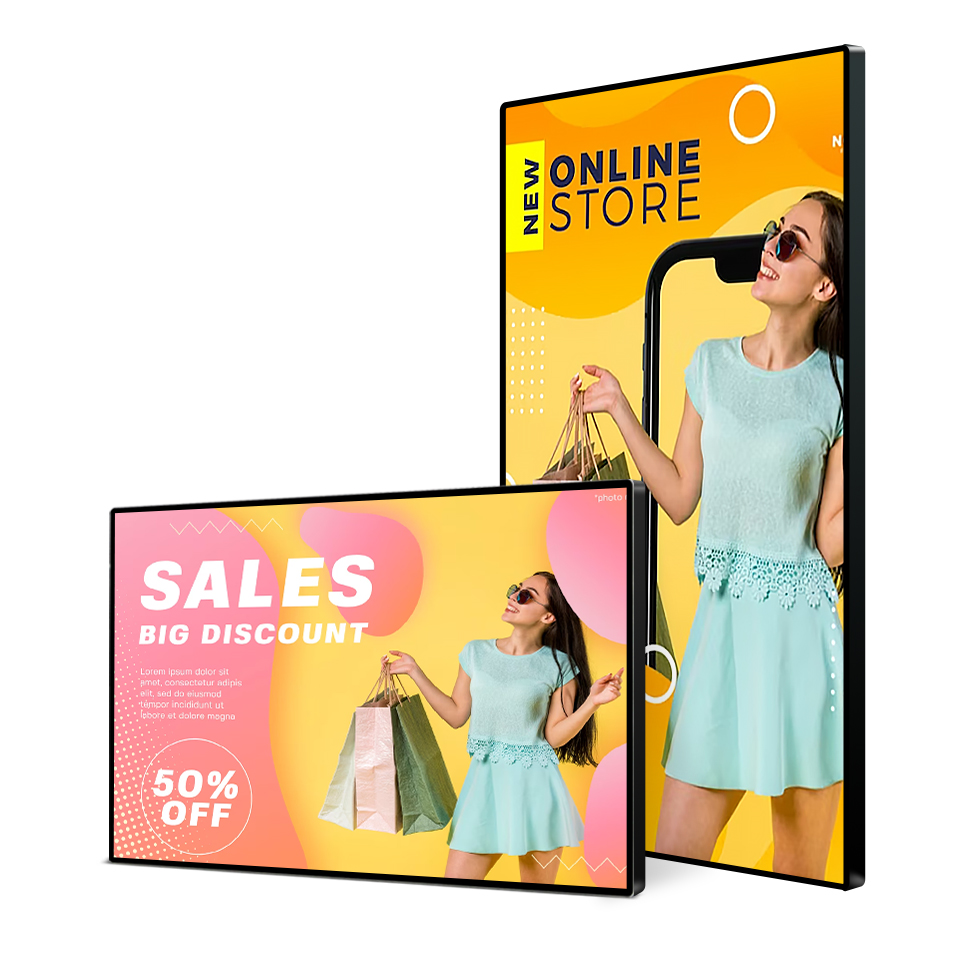

*Perfect for Retail Display
Incredibly sleek, stylish and slim yet extremely visible with 350nits display, designed to stand out in busy retail and commercial environments.
*Ultra Slim design & Black Bezel
Featuring an ultra slim profile and bezel, the square screen is perfect for a range of retail locations to suit bespoke builds and unique designs.
*Plug & Play (USB) or Cloud CMS Connected
Content can be updated easily via USB with the built-in Media Player or upgrade to a Cloud Connected Media player to schedule content and schedules remotely.

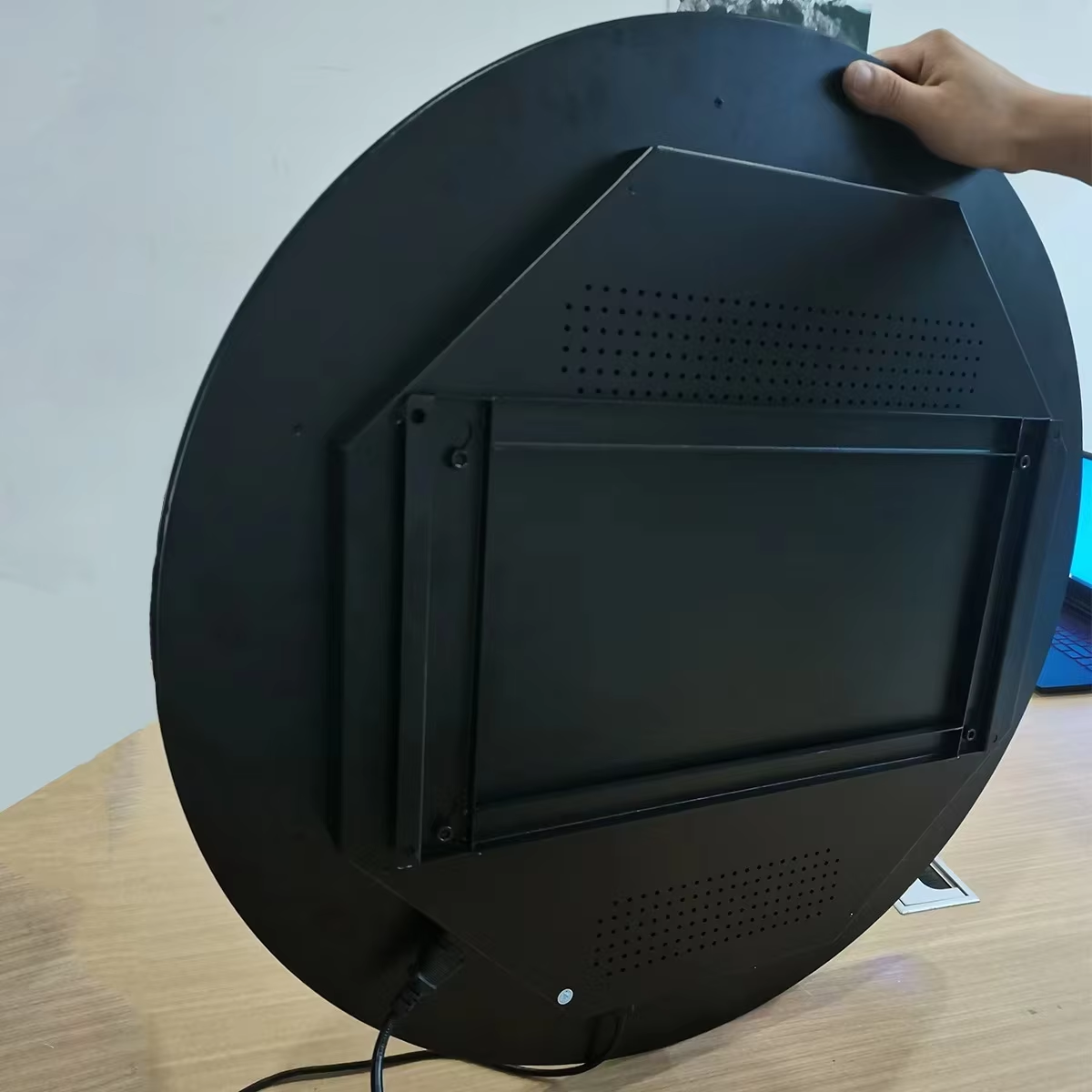

*Lightweight & Easy Installation
Complete with a hanging kit and bracket, the screen can be installed in a matter of minutes hassle free.
*24/7 Commercial Grade
As they are designed for the retail spaces these screens are commercially graded to run constantly 24/7.
Specification:
| Product Name | 23.6inch | 5inch | 3.4inch | |
| LCD | LCD size | 23.6" TFT LCD | 5" TFT LCD | 3.4" TFT LCD |
| Unit Size | 666.084 x 666 x 47.33mm | Φ150.5*15mm | Φ119.62*15mm | |
| Unit Weight | 0.4kg | |||
| Resolution | 848*848 | 1080*1080 | 1080*1080 | |
| Brightness | 700cd/m2 | 500cd/m2 | 500cd/m2 | |
| Contrast | 1000:1 | 1000:1 | 1000:1 | |

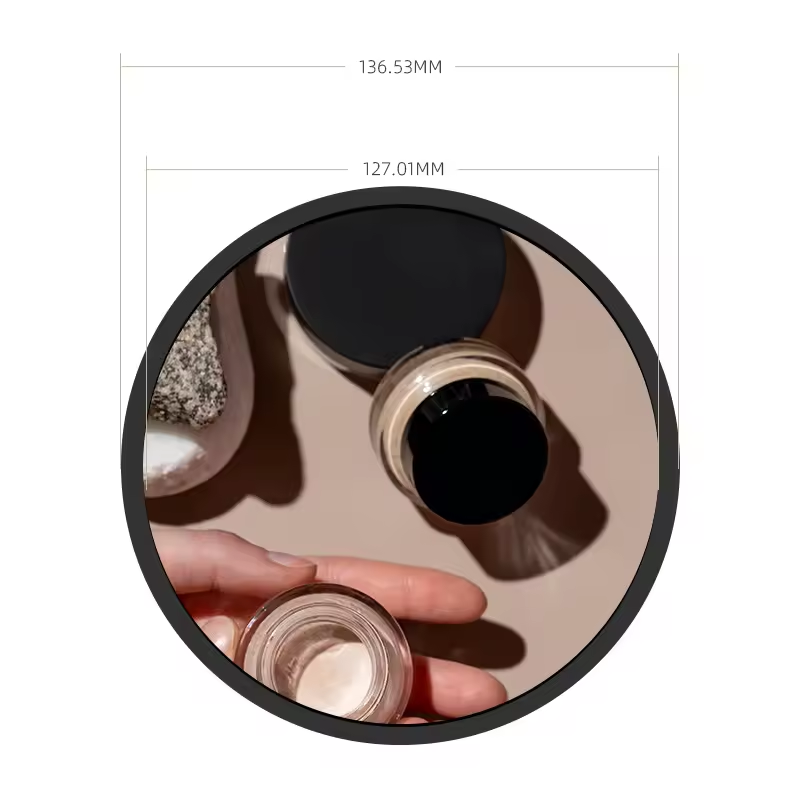

| AA area/ Ratio | Φ600mm | Φ127mm | Φ88mm | |
| View Angle | 89°/89°/89°/89° | 89°/89°/89°/89° | 89°/89°/89°/89° | |
| Aspect Ratio | 16: 9 | 16: 9 | 16: 9 | |
| OS | OS/CPU | Android7.1, Rockchip RK3288 Quadcore | Android 11, Rockchip RK3566 | Android 11, Rockchip RK3566 |
| RAM/FLASH | 1G/8G | 2G/16G | 2G/16G | |
| Network | WIFI | 802.11b/g/n | 802.11b/g/n | 802.11b/g/n |
| Ethernet | 100M | 100M | 100M | |
| Bluetooth | BT4.2 | BT4.2 | BT4.2 | |
| Port | HDMI | 1*1080 OUTPUT | / | / |
| Mini USB | 2*USB2.0, RS2322*2 | / | / | |
| Mini RJ45 | / | / | / | |
| Card slot | / | / | / | |
| Type-C(DC IN) | / | 1 | 1 | |
| Design | Color | Full black or Customization | ||
| Shell Material | Metal | |||
| Installation | Table top/ Wall mount | |||
| Others | Operation temp. | 0℃ ~50℃ | ||
| Storage temp. | -20℃ ~60℃ | |||
| Operation Humidity | 5% ~90% | |||
| Storage Humidity | 5% ~90% | |||
| Working life | 60000hrs | |||
| Power | ≤120W, AC110~240V | ≤20W, DC5V/3A | ≤10W, DC5V/3A | |
