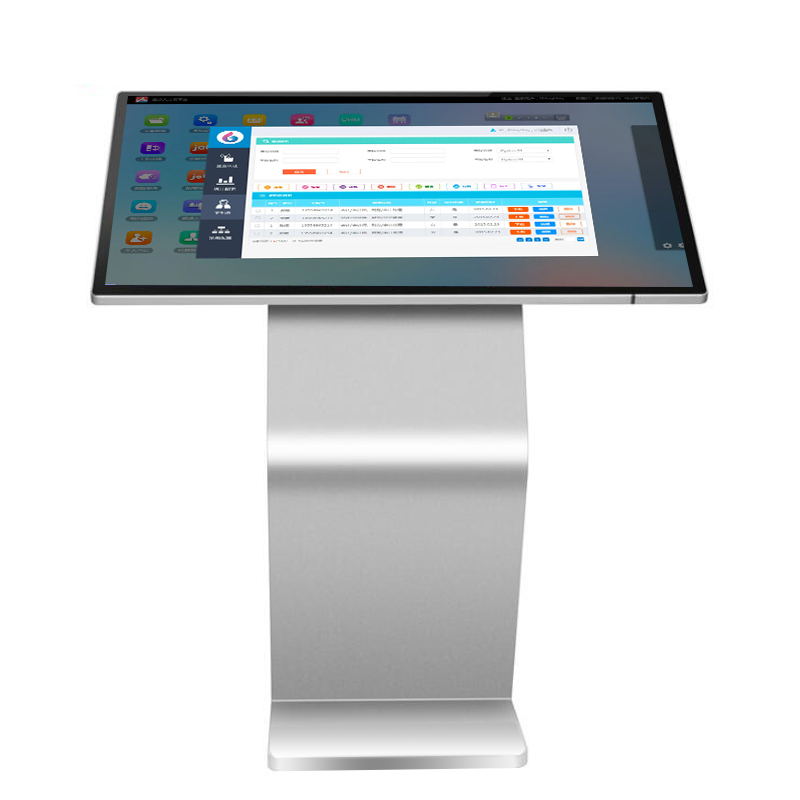

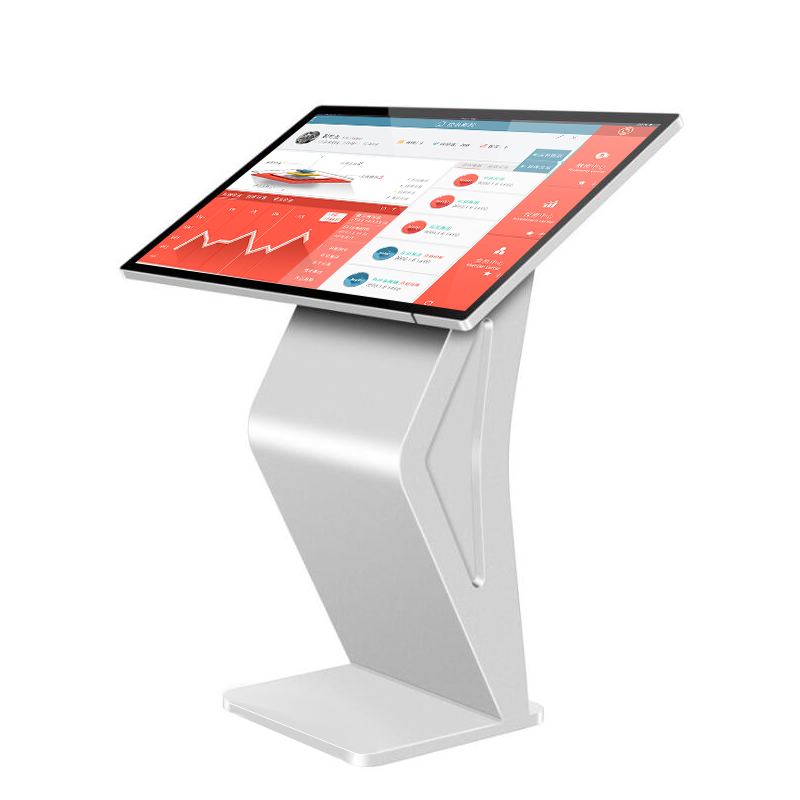

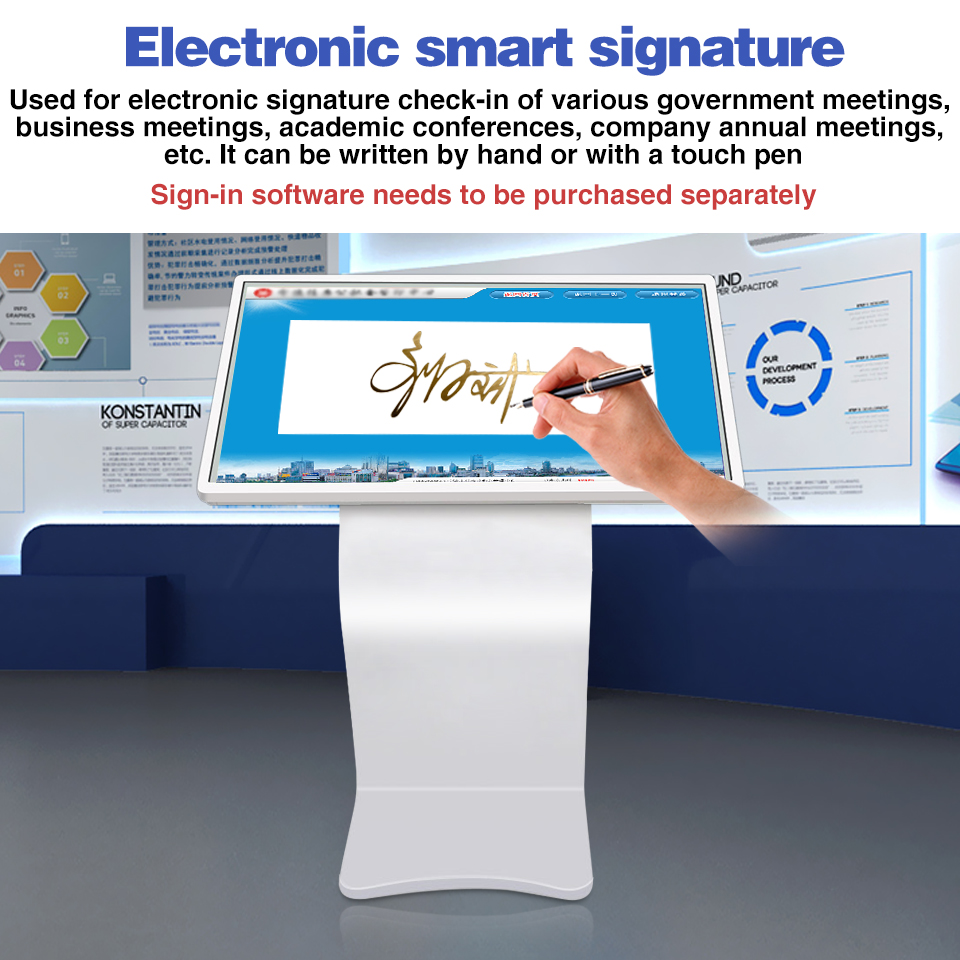

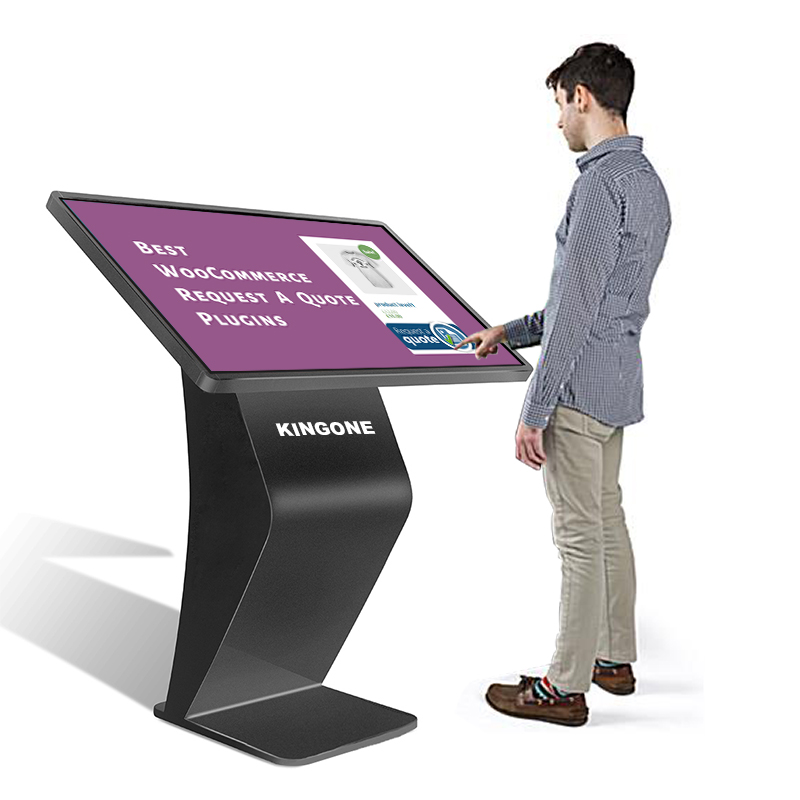

lcd digital information display multi media interactive horizontal touch query all in one kiosk

Features of 55 inch touch screen kiosk

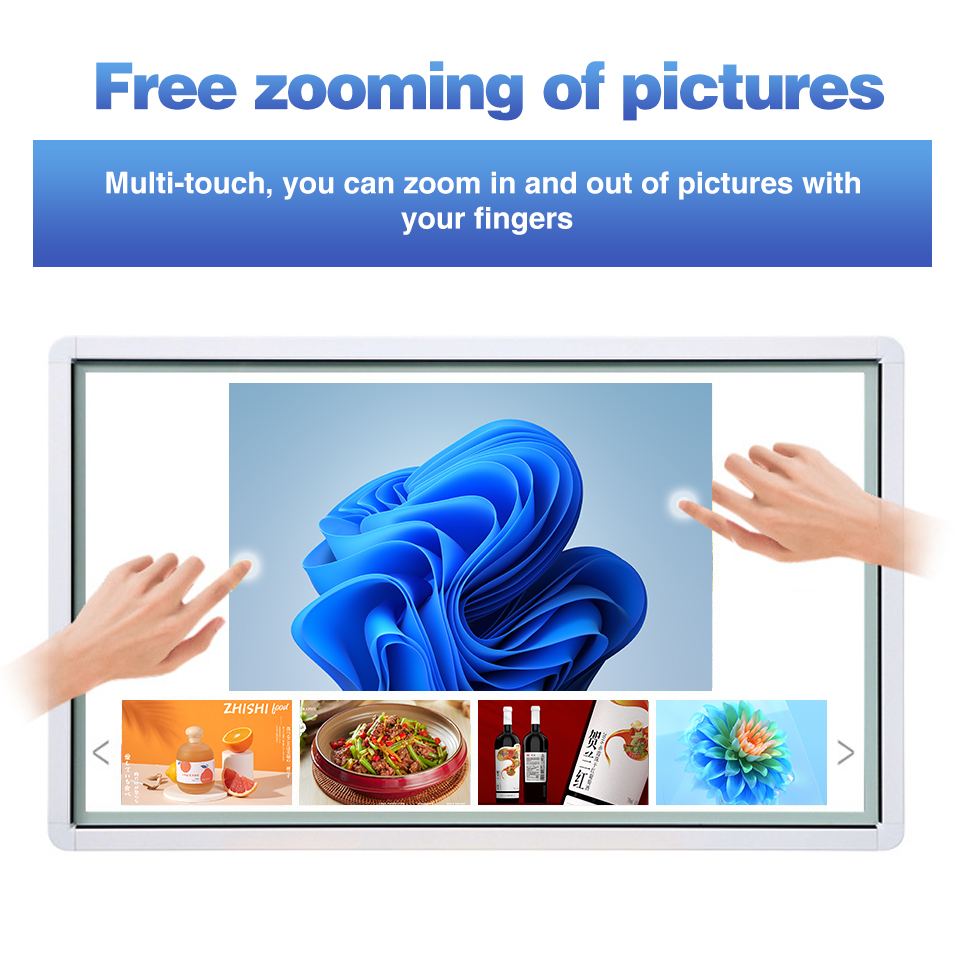

♦ 10 points IR touch screen

♦ Support shockproof and dust proof function.

♦ Comes with WIFI

♦ Equiped with multiple signal interfaces

♦ Aluminum alloy body with front access touch frame module

♦ Locking system for anti-thieves, prevented the storage devices ( SD/CF cards ) from being stolen.

♦ Available in a wide range of sizes: 32″ 42″ 50″ 55”, 65”, 75”

Product Details

Product Description


                                     lcd digital information display multi media interactive horizontal touch query all in one kiosk


Features

●2K and 4K Ultra HD LCD panel, resolution is 1080P

●Automatically backlight and brightness adjust, intelligent screen protection, anti-burns

● 3D digital noise reduction,HD high-definition signals,Progressive scan, make the image vivid and smooth.

●Multiple full HD interfaces, High compatibility

●500/2000cdm highlights, direct sunlight is still clearly visible
●4mm ultra-narrow edge: wall-mounted, small footprint, 4mm thickness, IPS pa
● Small size, light weight, LED backlight has excellent visual visual and auditory enjoyment
● Built-in MEMORY 2G, ROM16G,TFT screen
● Can be used for WIFI wireless network, optional 4G network, BT module● One mother board, sync display or different display on both sides
● Stylish and modern design, thickness only 0.8cm
● Support 7*24 Hours long time playback
● Playing video or picture demand

● Photosensitive system: adjust the screen brightness according to the environment, autotm

*Perfect for Retail Display

Incredibly sleek, stylish and slim yet extremely visible with 350nits display, designed to stand out in busy retail and commercial environments.

*Ultra Slim design & Black Bezel

Featuring an ultra slim profile and bezel, the square screen is perfect for a range of retail locations to suit bespoke builds and unique designs.

*Plug & Play (USB) or Cloud CMS Connected

Content can be updated easily via USB with the built-in Media Player or upgrade to a Cloud Connected Media player to schedule content and schedules remotely.

*Lightweight & Easy Installation

Complete with a hanging kit and bracket, the screen can be installed in a matter of minutes hassle free.

*24/7 Commercial Grade

As they are designed for the retail spaces these screens are commercially graded to run constantly 24/7.

Specification:

size	BTS-AD270	BTS-AD320	BTS-AD430	BTS-AD490	BTS-AD550
Availavle solution	Android/AD board
LCD	27inch	32inch	43inch	49inch	55inch
O/C	TFT glass	TFT glass	TFT glass	TFT glass	TFT glass
Back resources	LED light	LED light	LED light	LED light	LED light
Resolution	1920×1080	1920×1080	1920×1080	3840*2160	3840*2160
Rate	16:09	16:09	16:09	16:09	16:09
Brightness	350cd/m2	350cd/m2	400cd/m2	400cd/m2	400cd/m2
Ratio	3000:1	3000:1	3000:1	3000:1	3000:1
Response time	6.5ms	6.5ms	6.5ms	6.5ms	6.5ms
Color gamut	16.7M，90%	16.7M，90%	16.7M，90%	16.7M，90%	16.7M，90%
Working life	60,000 H(typ)	60,000 H(typ)	60,000 H(typ)	60,000 H(typ)	60,000 H(typ)
View Angle	89/89/89/89(CR≥10)	89/89/89/89(CR≥10)	89/89/89/89(CR≥10)	89/89/89/89(CR≥10)	89/89/89/89(CR≥10)
Bezel	9.8mm	9.8mm	9.8mm	9.8mm	9.8mm
Voltage	AC 100~230V，50~60Hz/ 220V，20A	AC 100~230V，50~60Hz/ 220V，20A	AC 100~230V，50~60Hz/ 220V，20A	AC 100~230V，50~60Hz/ 220V，20A	AC 100~230V，50~60Hz/ 220V，20A
Power consumption	40W	45W	60W	85W	130W
Operating method	Remote control	Remote control	Remote control	Remote control	Remote control
Working temperature/Humidity	0~50℃/20%~80%	0~50℃/20%~80%	0~50℃/20%~80%	0~50℃/20%~80%	0~50℃/20%~80%
Stock temperature/humidity	-10~60℃/5%~95%	-10~60℃/5%~95%	-10~60℃/5%~95%	-10~60℃/5%~95%	-10~60℃/5%~95%
CPU	RK3568 CPU：Quad core
CPU	Android 11	Android 11	Android 11	Android 11	Android 11
Memory	2G+8G	2G+8G	2G+8G	2G+8G	2G+8G
Interface	USB*2	USB*2	USB*2	USB*2	USB*2
OSD	Multiple languages	Multiple languages	Multiple languages	Multiple languages	Multiple languages

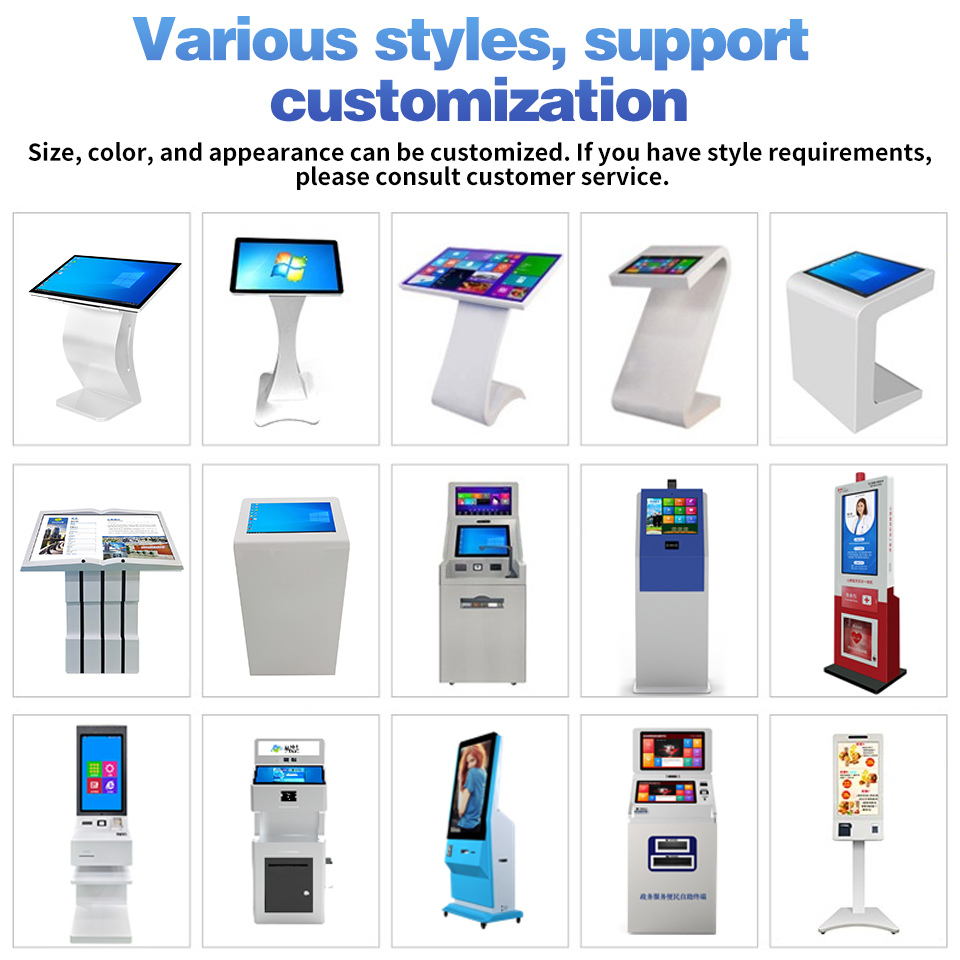

Device color /Material	Customized	Customized	Customized	Customized	Customized
Device N.W	5kg	12kg	14kg	18kg	22kg

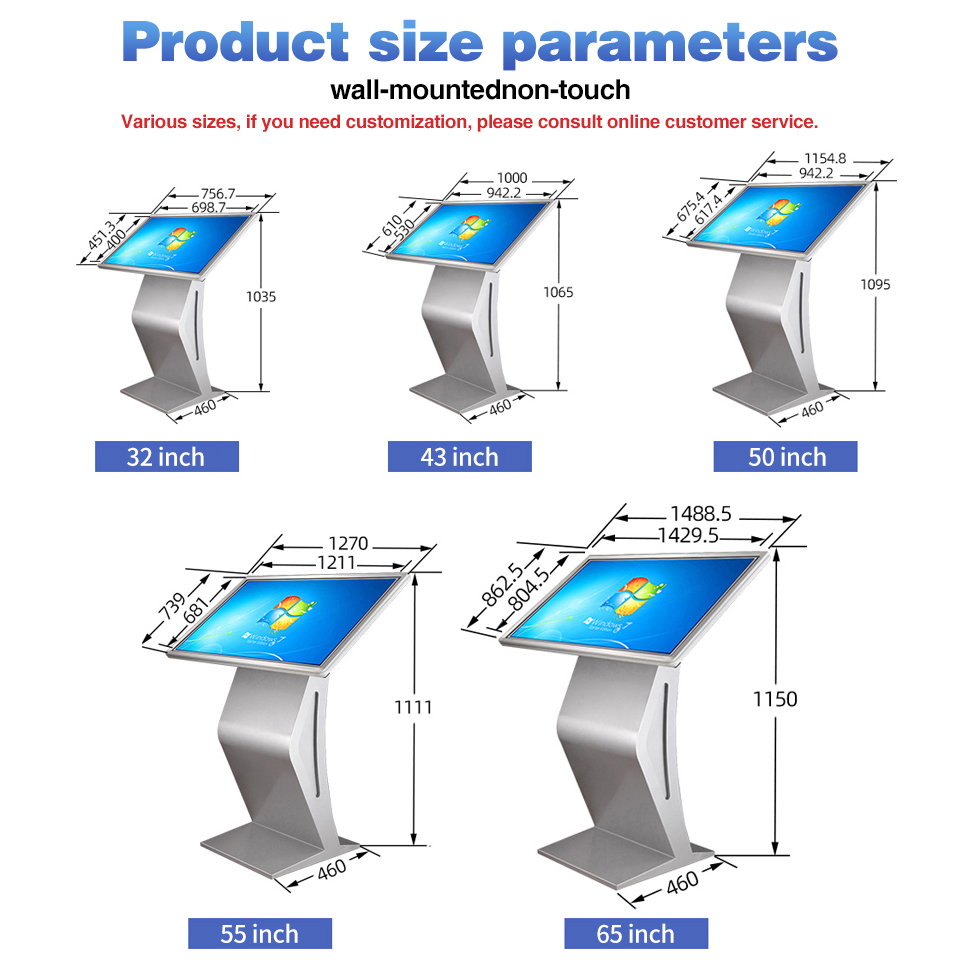

Device size	620.435918mm	722416.518mm	968.855718mm	1097.3627.618mm	1233.470418mm

FAQ:

1. Who are we?
We are based in Guangdong, China, start from 2015,sell to Domestic Market(5%),North America(15%),Western
Europe(30%),,Northern Europe(50%),There are total about 11-50 people in our office.Engineering team of 10 people, three production lines, a dust-free workshop, monitoring room, aging room, 2000 square meters warehouse

We have 10 items of product inspection before shipment to ensure that the goods you receive are perfect

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
LCD Video Wall,Digital Window Display,Touch kiosk,Outdoor Digital Totem,Commercial Display

4. Why should you buy from us not from other suppliers?
1.9-years manufacturing LCD equipment
2.excellent facilities and perfect service
3.We are a high-tech firm compliant with ISO9001:2008 standard
4.Growing with the partner
