Dongguan BT stars E-commerce Co., Ltd.
Features
Place of Origin: Shenzhen, China
Size:43 inch , 49 inch and 55 inch
Certification: CE, RoHS
Payment & Shipping Terms
Minimum Order Quantity: 1-10PC
Price: Negotiable
Packaging Details: EPE+ Carton box
Delivery Time: sample for 5 working days, bulk order about 25-30 days
Payment Terms: T/T, PayPal
Supply Ability: 2000pcs per month
Ultra high brightness window displays with double side screen
Features

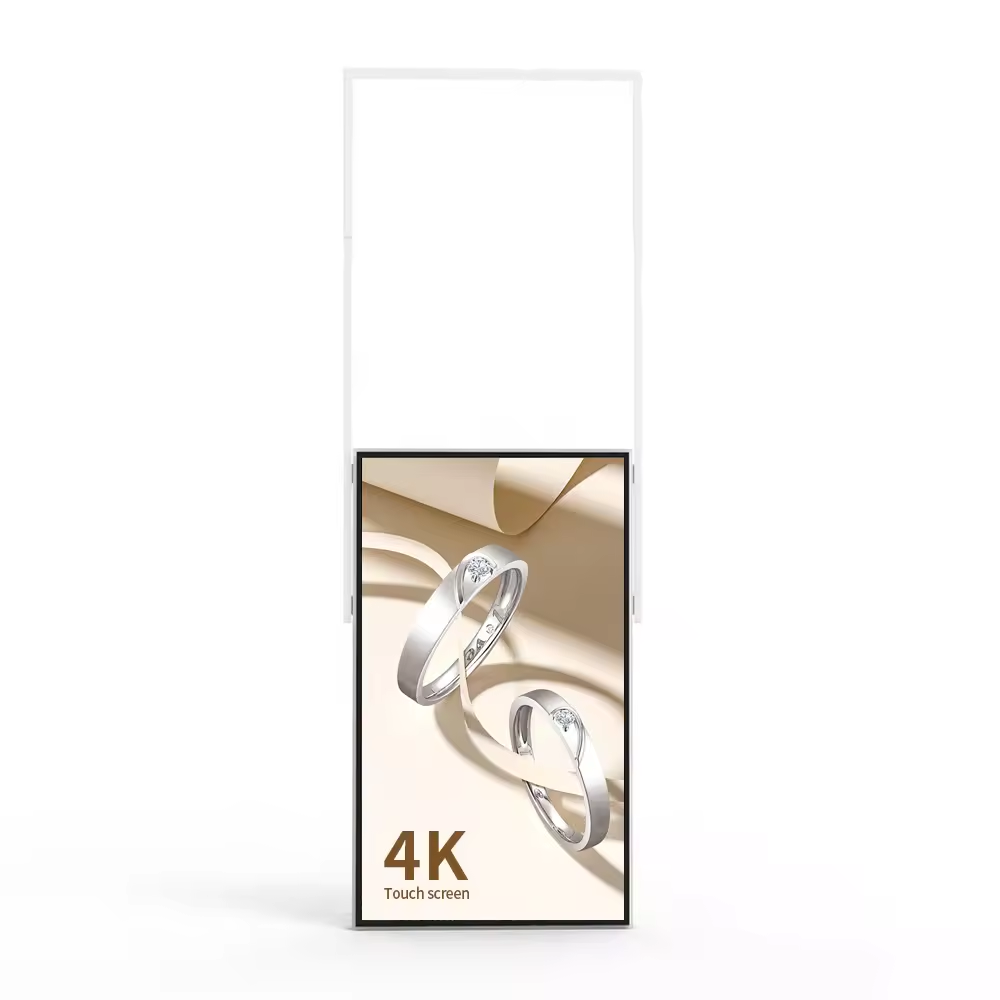

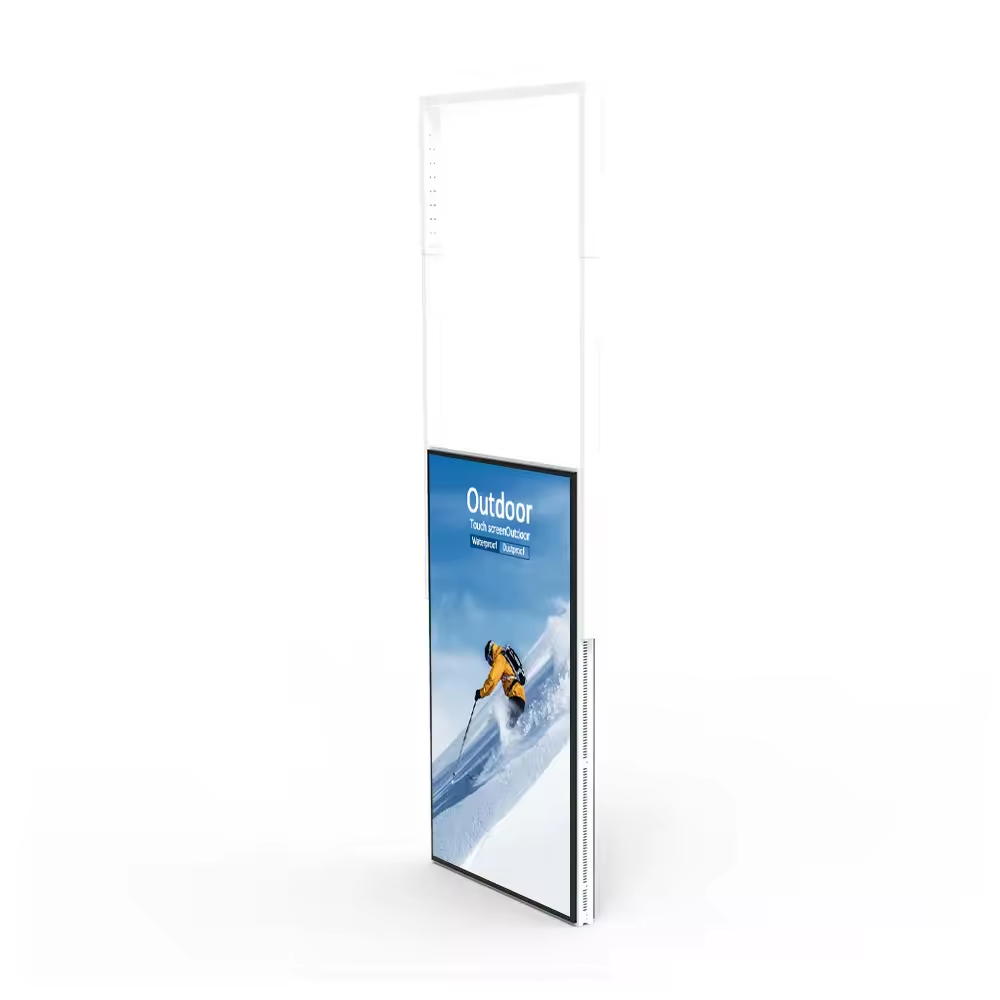

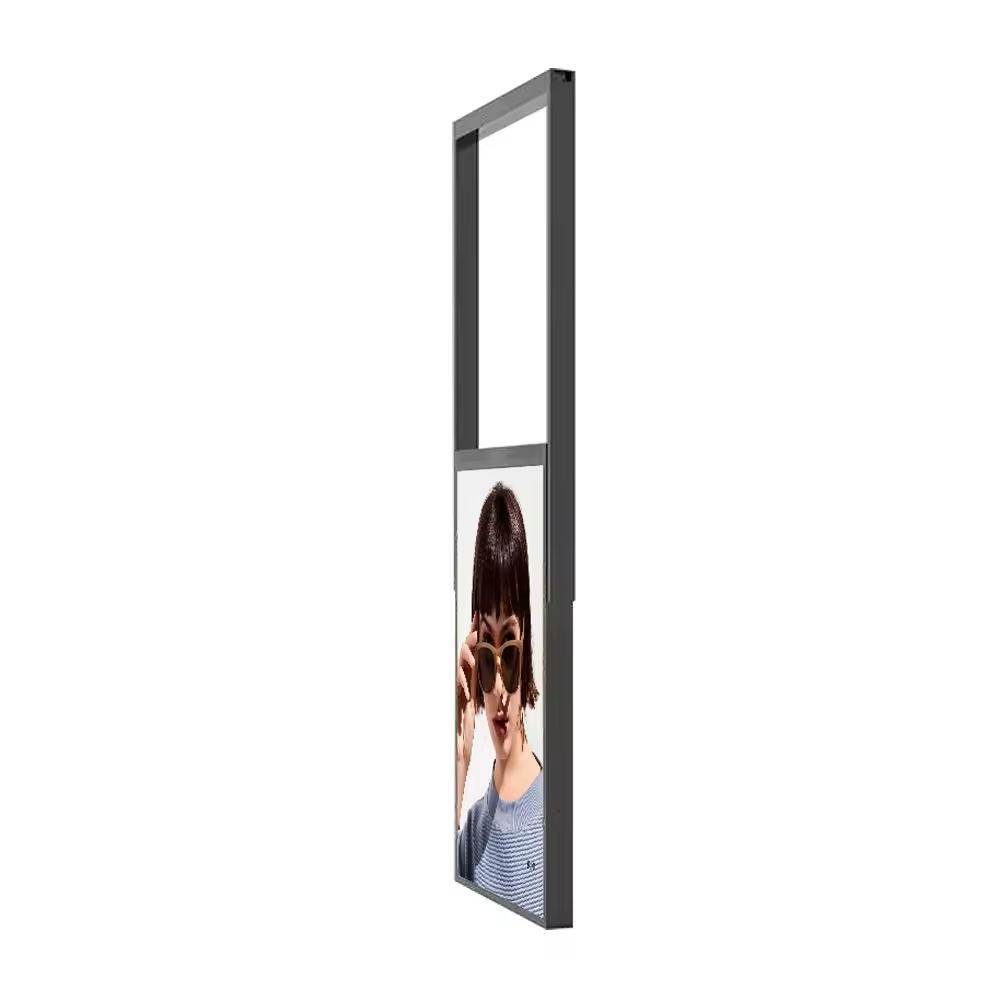

1.Ceiling Mount High Brightness Dual Sided Digital Window Display.
2. Screen towards insided is 700nits, and screen towards outside is 2500nits.
3. Built-in Android 7.1 system and media player. CMS cloud support.
4. Sun-Readable screen. Suitable for retail stores, supermarkets and so on.
5. 1920X1080 Full HD Resolution, 7x24hrs operation.
6. Screen size: 43", 49", 55" and 65".
*Perfect for Retail Display
High Brightness and Sunlight Readability: The Advertising Screen LCD Display Monitor features a sunlight-readable 3000nit brightness, making it ideal for outdoor and indoor applications, including exhibition halls, shopping malls, wayfinding, and self-service businesses.

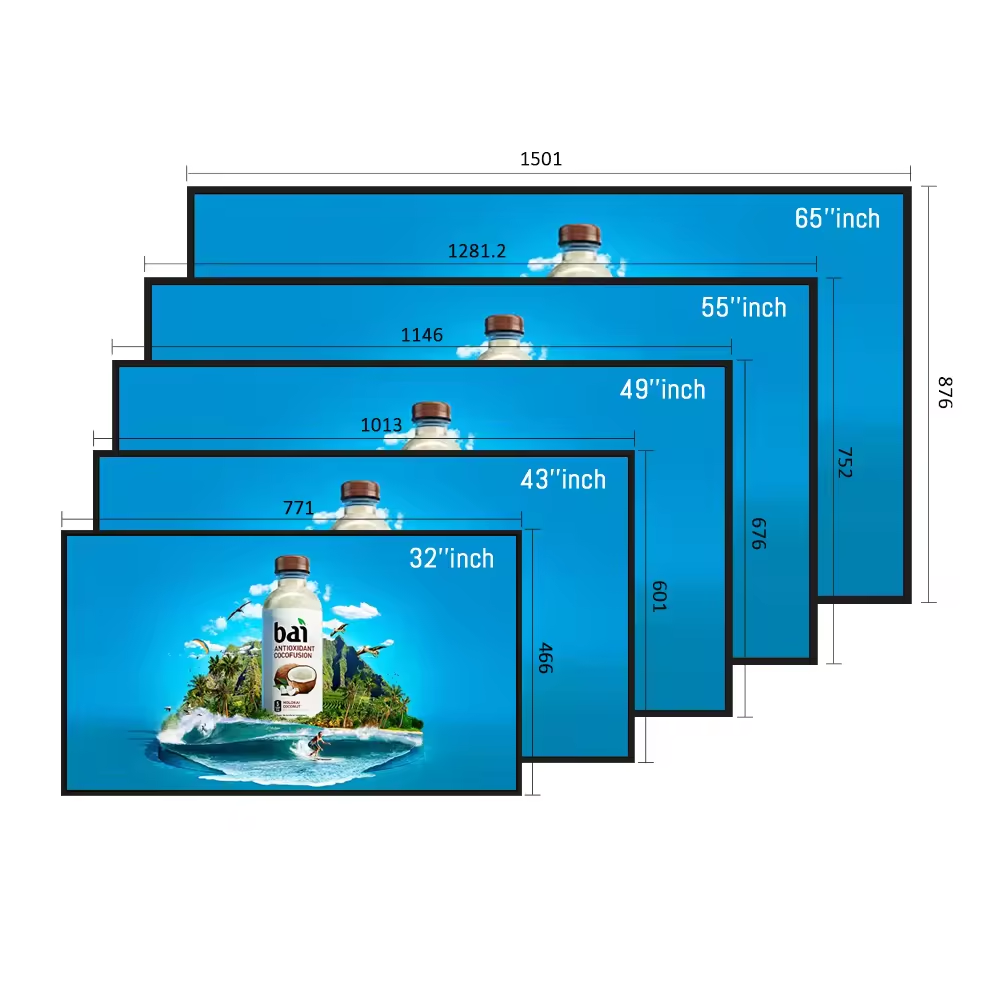

Wide Screen Options: The 86-inch, 80-inch, 50-inch, 65-inch, 55-inch, 75-inch, and 32-inch screen sizes offer flexibility in choosing the perfect display for your needs, whether for advertising, media, or retail applications.

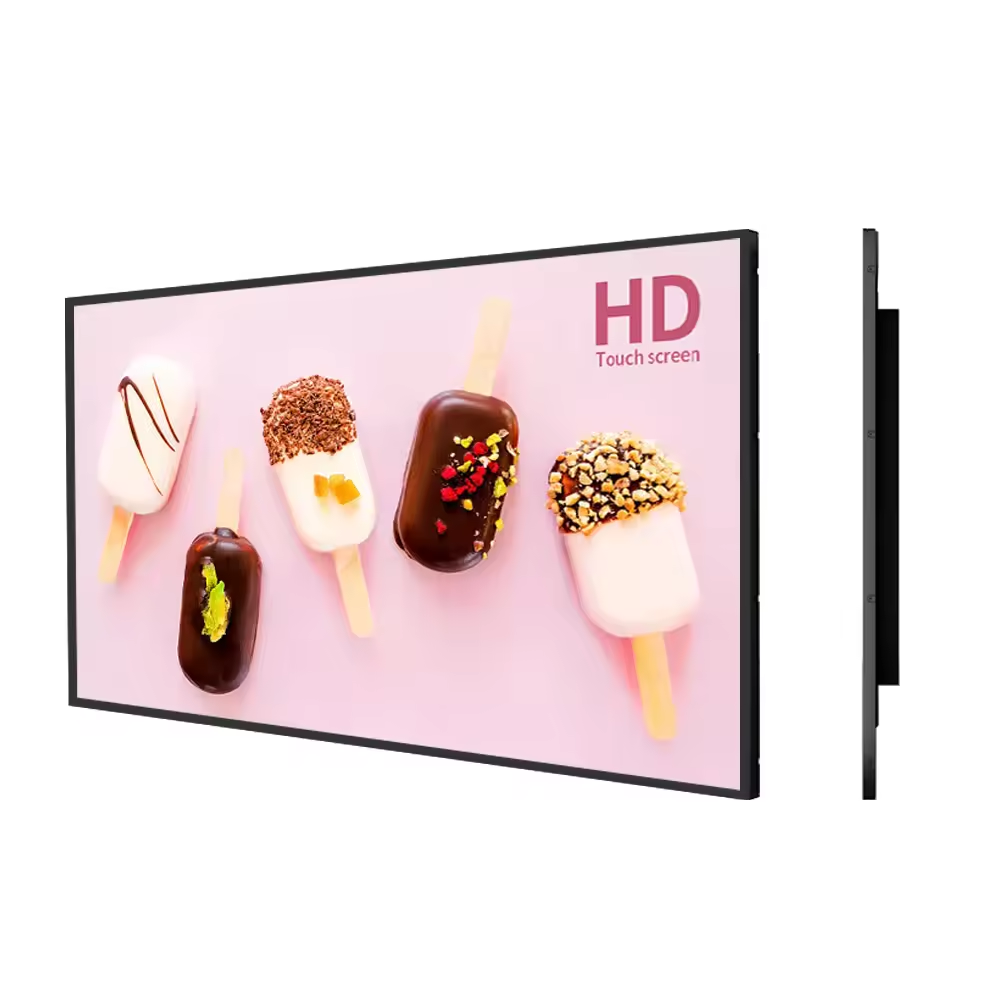

Touchscreen Functionality: The optional touchscreen functionality allows for user interaction and engagement, enhancing the overall experience for applications like elevator displays, education, or display of dishes.

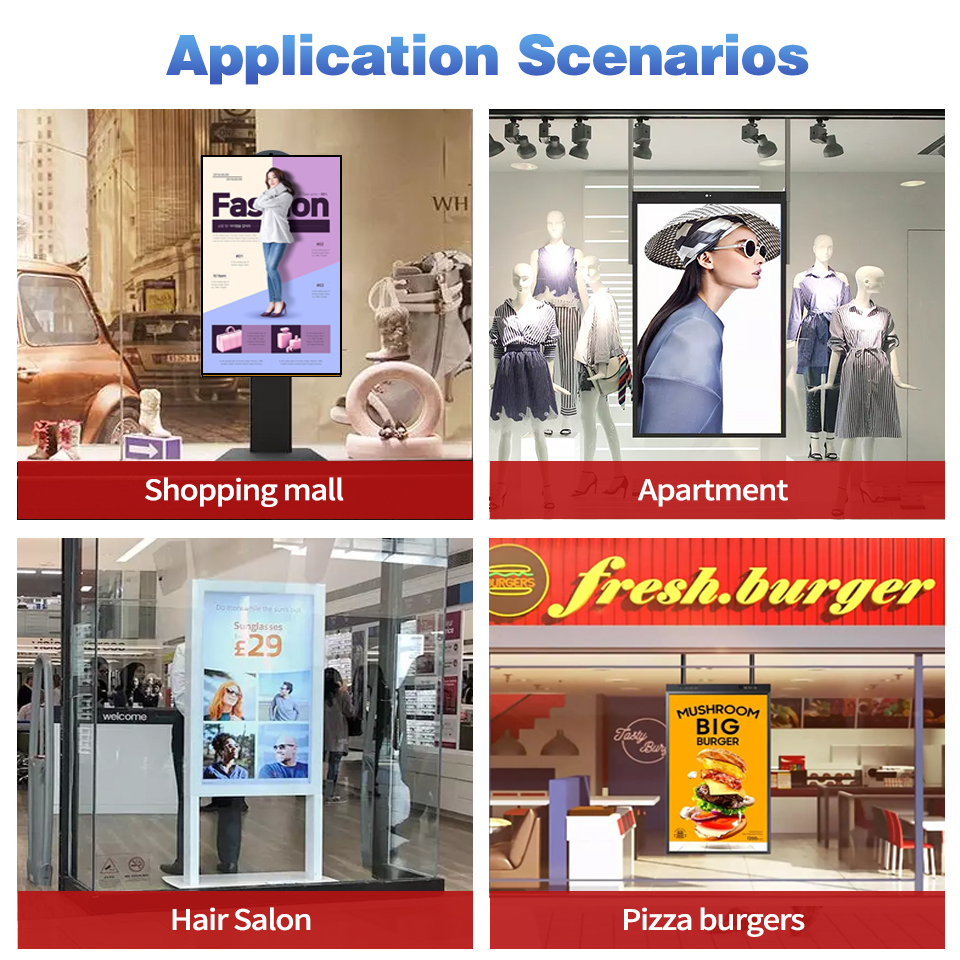

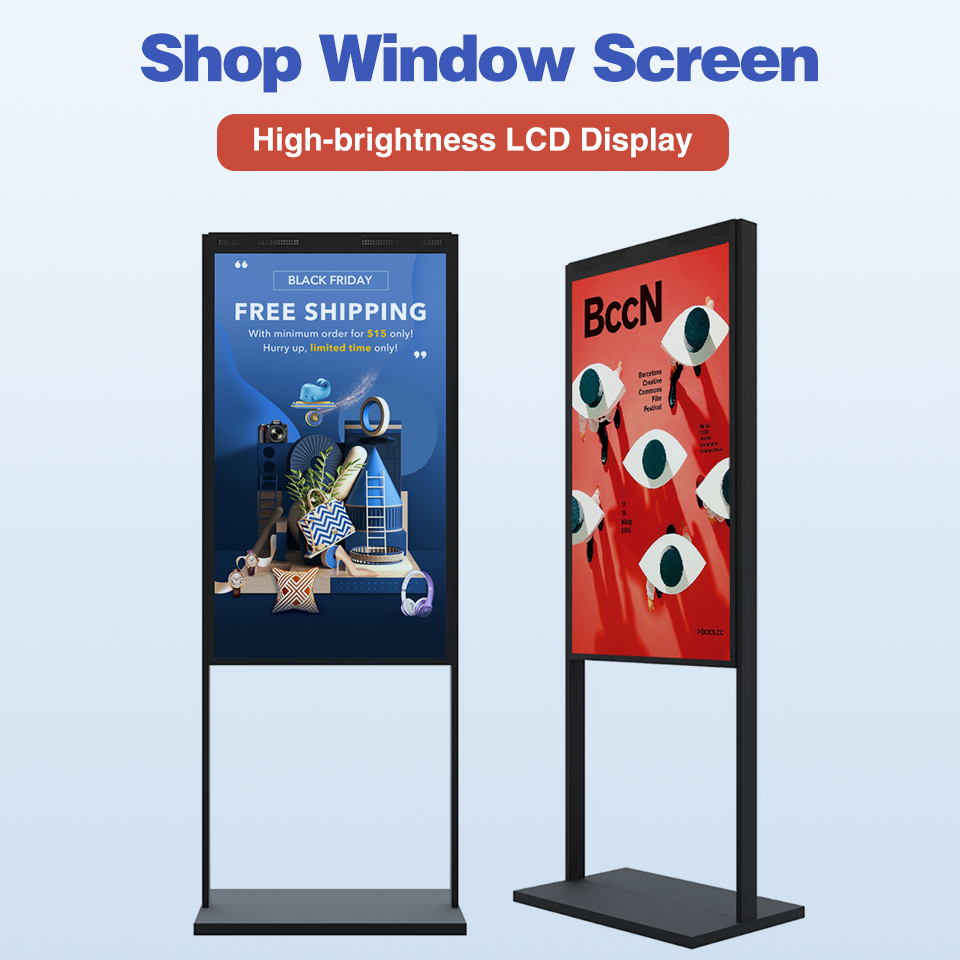

Versatile Installations: The product can be installed using floor stands, hanging systems, or as a window-facing display, making it suitable for various environments like retail stores, airports, and educational institutions.
Custom Solutions: The LCD Display is manufactured by an original equipment manufacturer, offering a wide range of customization options such as Android operating system, SDK, and various media available including datasheets, EDA/CAD models, and photos.
Specification:
| Product Name | Single Sided Window Display 32/43/49/55/65/75 | |||||
| 32inch | 49inch | 55inch | 65inch | 75inch | ||
| Available solution | Android/windows/AD board | |||||
| LCD | LCD size | 1*32"TFT LCD | 1*49" TFT LCD | 1*55"TFT LCD | 65″TFT LCD | 75″TFT LCD |
| Unit Size (L*W*T)) | 721.7*416.3*57.2mm | 1164.5*664.5*79mm | 1263*734*59.5mm | 1450.4*825.4*57.2mm | 1679*958*63.2(L*W*T) | |
| Unit Weight | 6.8kg | 33kg | 23.5kg | 29.21KG | 39.2KG（N.W） | |
| Resolution | 1920*1080 | 1080*1920 | 1080x1920 | 3840*2160 | 3840*2160 | |
| Brightness | 2000cd/m2 | 3000cd/m2 | 3000cd/m2 | 3000cd/m2 | 3000cd/m2 | |
| Contrast | 1000:1 | 1000:1 | 1200:1 | 1200:1 | 1200:1 | |
| AA area | 704.8 x399.3mm | 1077.7*607.7(mm) | 1213 x684mm | 1432 x807mm | 1432mm x807mm | |
| View Angle | 89°/89°/89°/89° | 178/178 (wide) | 89°/89°/89°/89° | 89°/89°/89°/89° | 89°/89°/89°/89° | |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | |
| Response Time | 6ms | 8ms | 6ms | 6ms | 6ms | |
| Color | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | |
| OS | OS/CPU | Android 7.1.2/ RK3288, ARM-A53, 1.8GHz | Android7.1/ Android quad core A53, 1.8GHz | Android quad core A53, 1.8GHz | Android quad core A53, 1.8GHz | Android quad core A53, 1.8GHz |
| Storage/ HD | 2G/8G | 2G/8G | 2G/8G | 2G/8G | 2G/8G | |
| Network | WIFI | WIFI/ Ethernet network | WIFI/ Ethernet network | WIFI/ Ethernet network | WIFI/ Ethernet network | WIFI/ Ethernet network |
| Ethernet | 100M | 100M | 100M | 100M | 100M | |
| Port | HDMI IN | 1*HDMI | NO | 1*HDMI | 1*HDMI2.0 | 1*HDMI2.0 |
| Mini USB | 1*MINI PCI-E、4*USB、1* M-SATA\ SATA1, 3sets of USB pins | USB*2 | 1*MINI PCI-E、4*USB、1* M-SATA\ SATA1, 3sets of USB pins | 2*USB | 2*USB | |
| Mini RJ45 | 1*RJ45 LAN | 1*RJ45 | 1*RJ45 LAN | 1*RJ45 | 1*RJ45 | |
| Built-in | Dual mini speaker | |||||
| Media | Video format | MPEG-1、MPEG-2、AVI(3.11)、XVID、H.264 RM/RMVB,MKV,TS,FLV,AVI,VOB, MOV,WMV | ||||
| Audio format | MPEG-1 Layers I、II、III2.0, MPEG-4 AAC-LC 5.1/HE-AAC 5.1/BSAC 2.0, WAV, 24-bit linear PCM 7.1 MPEG-1 Layers I、II、III2.0, MPEG-4 AAC-LC5.1/HE-AAC 5.1/BSAC 2.0, WAV, 24-bit linear PCM 7.1 | |||||
| Picture format | BMP、JPEG、PNG、GIF | |||||
| Design | Color | Full black/or Customization | ||||
| Shell Material | Metal | |||||
| Installation | Wall mounting/ Hanging | |||||
| Others | Oper.Temp. | -30℃ ~80℃ | ||||
| Storage temp. | -30℃ ~80℃ | |||||
| Oper. Humi. | 5% ~90% | |||||
| Storage Humi. | 5% ~90% | |||||
| Working life | 50000hrs | |||||
| Power | 100V~240V AC, ≤100W | 100V~240V AC, ≤200W | 100V~240V AC, ≤320W | 100V~240V AC, ≤380W | 100V~240V AC, ≤420W | |
| Size | Packing Size | 845*535*110mm | 1300*815*100mm | 1380*185*840 mm | 1610*200*1000 mm | 1830*1100*220mm |
FAQ:
1. Who are we?
We are based in Guangdong, China, start from 2015,sell to Domestic Market(5%),North America(15%),Western
Europe(30%),,Northern Europe(50%),There are total about 11-50 people in our office.Engineering team of 10 people, three production lines, a dust-free workshop, monitoring room, aging room, 2000 square meters warehouse
